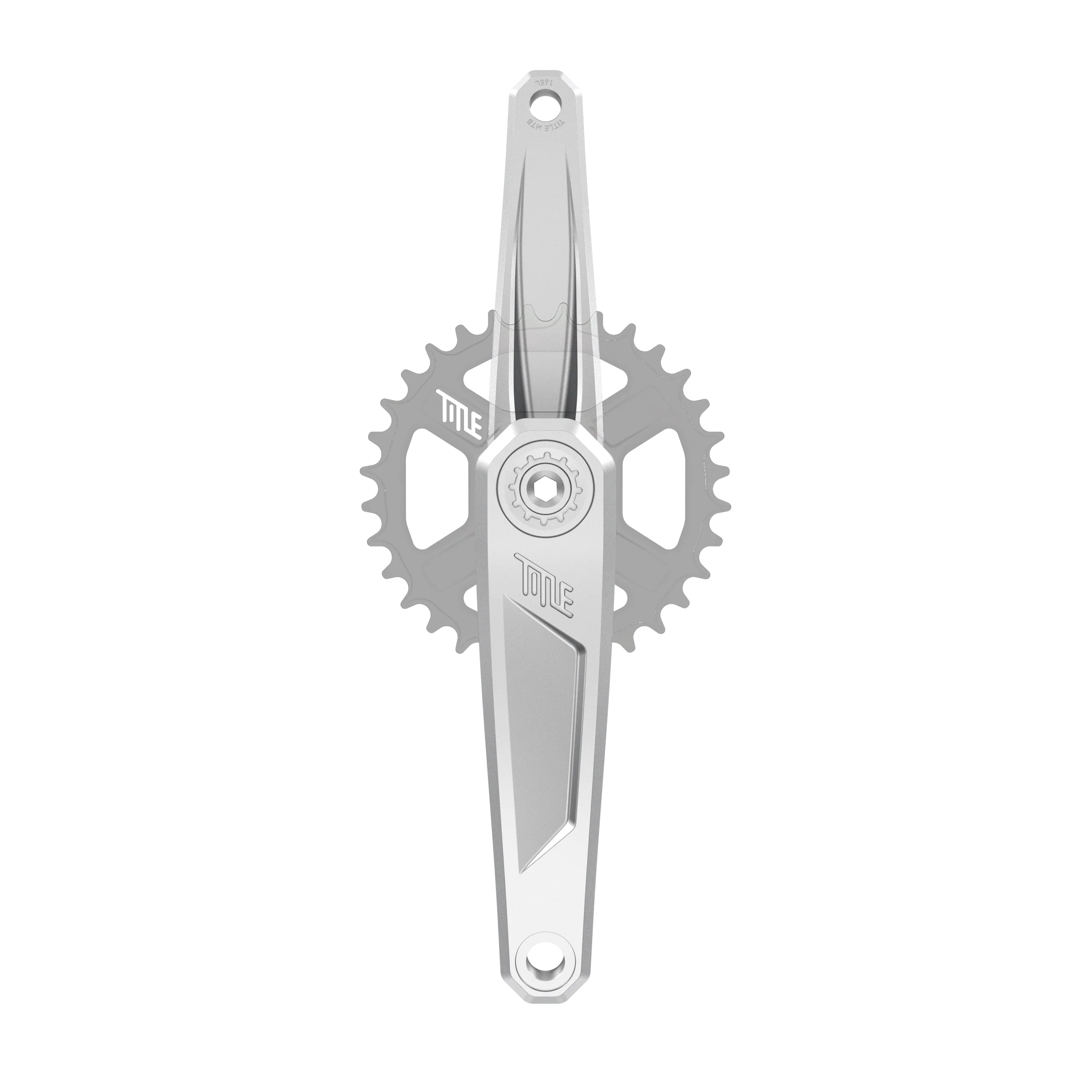

CR1 Crank Arms (Spindle and Chainring not included)

FEATURES

The CR1 platform was developed to eliminate the headaches of finding the right crankset for different bikes. With interchangeable spindle options and broad drivetrain compatibility, riders can configure the CR1 for everything from a dirt jumper to a World Cup downhill bike.

*Designed for SRAM DUB bottom brackets*

• Rigorously tested by EFBE. Passed TRI-TEST® GR. Certified for enduro, freeride, and downhill mountain bikes

SPECIFICATIONS

• Three-piece design
• 29mm crank spindle diameter
• Aluminum pre-loader
• Available in three lengths: 155mm, 160mm, 165mm
• Machined from 7075 T6 aluminum
• Anodized matte black or chrome finish
• SRAM 8 bolt direct mount compatible only
• Chainring Not included
• Compatible with Title CR1 spindle
• Compatible with SRAM Dub 29mm bottom bracket only. Not included

WHICH SPINDLE DO I NEED?

Choosing the correct spindle depends on your bike's frame and drivetrain setup. But as a general rule of thumb, compatibility is as follows:

• 130mm Spindle – Dirt Jump and non-Boost bikes
• 136mm Spindle – Most modern Trail and Enduro bikes with Boost spacing
• 145mm Spindle – Downhill bikes

If you're unsure which spindle is right for you, check your bike manufacturer's website for your specific bike's sizing and spacing or check out our compatibility chart.

CHAIN COMPATIBILITY BY CHAINRING:

SRAM T-Type = Compatible with SRAM T-Type 12-speed drivetrains only

Shimano HG 12 = Compatible with Shimano HG12 12-speed chains such as:

• XTR CN-M9100/M9200
• XT CN-M8100/M8200
• SLX CN-M7100/M7200

Regular = Compatible with most 9-12 speed drivetrains including the following:

• All 9, 10, 11, & 12-speed SRAM drivetrains
• All 9, 10, & 11-speed Shimano drivetrains
• All 9, 10, & 11-speed KMC chains
• single speed setups


Weights

• 165mm with 136mm spindle without chainring =
• 32T Chainring = 72g
